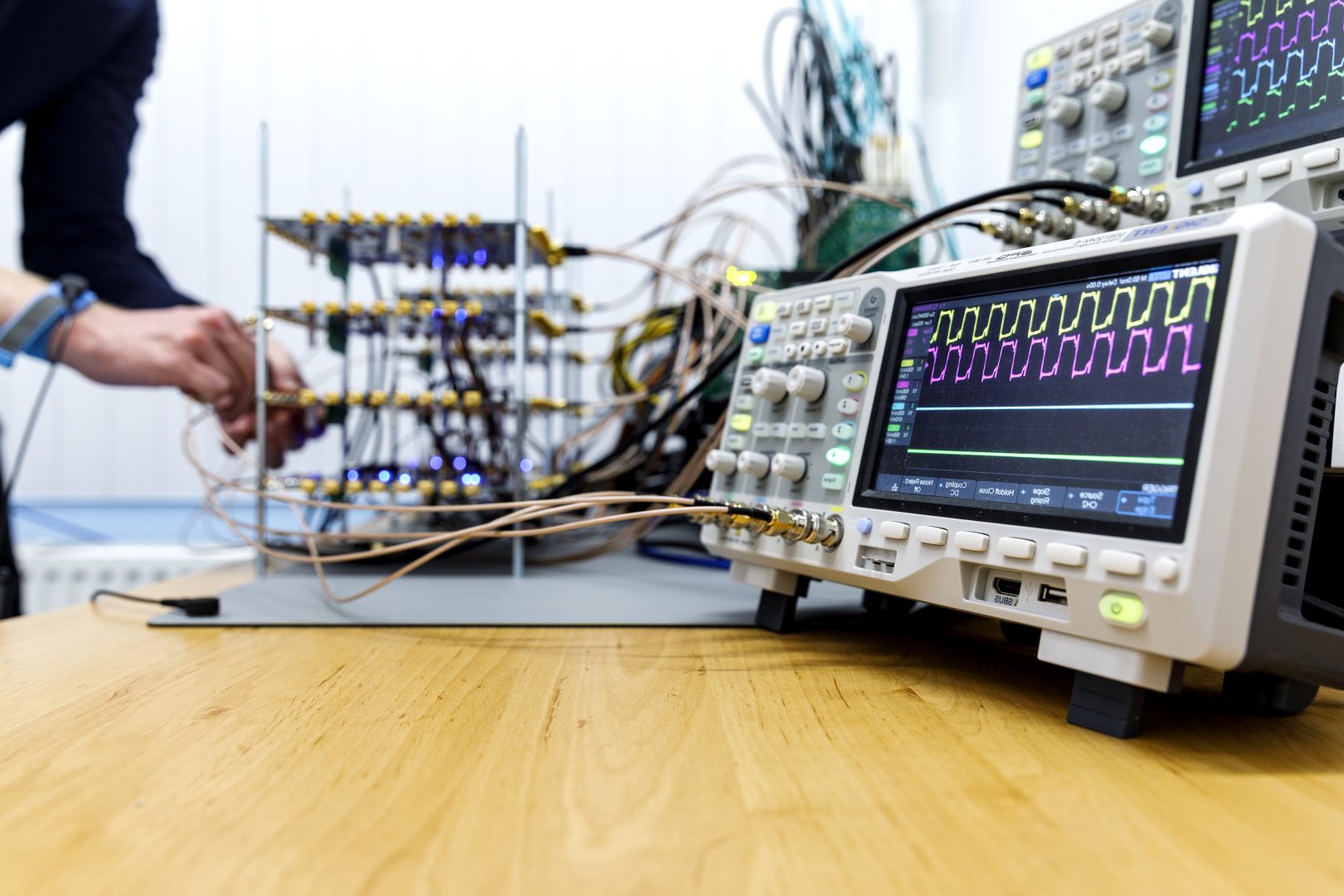

In mission-critical applications where timing is essential, real-time performance is everything. Real-time systems must meet precise deadlines consistently, whether that’s responding to a sensor input within microseconds or processing laser-based satellite communication data at 5000 frames per second without missing a single frame.
FPGAs (Field Programmable Gate Arrays) excel at delivering these hard real-time guarantees in ways that traditional computing platforms simply cannot match.
Real-time performance is something fundamentally different from just ‘being fast’. It also differs from ‘low latency’ applications, where strict requirements are put on response time, not throughput. While speed focuses on how quickly a task can be completed, real-time systems prioritize meeting specific deadlines with absolute consistency. A real-time system that responds in exactly 100 microseconds every time is superior to a faster system that usually responds in 50 microseconds but occasionally takes 200 microseconds.
This distinction becomes critical when differentiating between ‘hard real-time’ and ‘soft real-time’ systems. Hard real-time applications—such as automotive safety systems or medical equipment controls—cannot tolerate missed deadlines under any circumstances. Soft real-time systems, like video streaming or user interfaces, can occasionally miss deadlines with minimal impact on overall performance.
FPGAs provide the deterministic behavior essential for hard real-time applications. Unlike general-purpose processors that juggle multiple tasks and deal with unpredictable elements like cache misses and system interrupts, FPGAs offer completely predictable timing behavior.
The secret to FPGA real-time performance lies in their deterministic architecture. With FPGAs, we have precise control over every clock cycle, enabling us to calculate exactly how long each operation will take. When you know that a specific calculation requires exactly 47 clock cycles, and you know your clock runs at 100 MHz (10 nanoseconds per cycle), you can guarantee that the calculation will complete in exactly 470 nanoseconds—every single time.
This predictability stems from the FPGA’s parallel architecture. Unlike sequential processors where multiple tasks compete for resources, FPGA subsystems operate independently in their own dedicated hardware spaces. Each real-time function gets its own compartmentalized section of the chip, eliminating interference between different processes.
The absence of unpredictable elements further enhances real-time performance. FPGAs don’t rely on caches with variable hit rates, don’t run operating systems that can interrupt critical processes, and don’t suffer from the resource contention that plagues multi-tasking environments.
Real-time FPGA solutions prove essential across numerous industries where deadline violations can have serious consequences:
Implementing real-time systems on FPGAs requires careful attention to clock cycle management and system architecture. Our engineers must account for every element in the signal path, from input processing through calculation to output delivery. The key lies in understanding that FPGA timing is completely predictable—if you design a system that takes 50 clock cycles to process an input, it will always take exactly 50 clock cycles.
Managing multiple real-time tasks simultaneously showcases the FPGA’s architectural advantages. Rather than competing for shared resources like CPU cores or memory buses, each real-time function operates in its dedicated hardware space. This compartmentalized approach means that adding a new real-time function doesn’t impact the timing guarantees of existing functions.
Requirements analysis plays a crucial role in real-time FPGA design. Engineers must carefully evaluate whether extremely tight timing requirements are truly necessary or represent over-conservative safety margins. Sometimes a design requiring a 10-microsecond response time will also work with 50 microseconds, opening up design possibilities and reducing implementation complexity and cost.
Traditional computing platforms face significant challenges when delivering hard real-time performance. Microcontrollers, even those designed for embedded applications, introduce timing unpredictability through features like caches and interrupt handling. Cache memory, while improving average performance, creates timing variability—the same operation might complete quickly if data is cached or slowly if a cache miss occurs.
Managing multiple real-time tasks on conventional platforms becomes increasingly complex as requirements grow. Each additional real-time task must compete for shared resources, requiring careful scheduling and priority management. Interrupt handlers can delay critical processes, and even real-time operating systems introduce overhead and scheduling uncertainty.
The complexity multiplies when dealing with multiple simultaneous real-time requirements. While a microcontroller might handle one real-time task adequately, coordinating several time-critical processes while maintaining hard deadlines becomes a significant engineering challenge. FPGAs eliminate this complexity by providing independent hardware resources for each real-time function.
The Clash compiler brings additional advantages to real-time FPGA development through its advanced type system and automatic timing analysis. Unlike traditional HDL approaches that require manual clock cycle counting, Clash automatically calculates timing requirements and tracks them through the design process.
When composing multiple operations in Clash, the type system automatically determines the total clock cycle count. If one function requires 3 clock cycles and another requires 4, the system automatically calculates that their composition will require 7 clock cycles. This machine-checked approach eliminates human counting errors that can occur during manual VHDL design.
Perhaps more importantly, Clash provides immediate feedback when timing requirements cannot be met. If a design modification pushes the clock cycle count from 50 to 51 cycles, but the system requirement calls for completion within 50 cycles, Clash immediately flags this timing violation. This early detection prevents timing problems from being discovered late in the development process through time-consuming simulation testing.
Successful real-time FPGA projects require close collaboration with system engineers who understand the broader application context. These engineers typically serve as the primary point of contact throughout both the quotation process and project implementation, bringing essential knowledge about system-level requirements and constraints.
The requirements process often reveals opportunities for optimization. System engineers, responsible for designing complex overall systems, sometimes apply conservative safety margins when specifying timing requirements. A requirement might call for a 10-microsecond response time when 50 microseconds would actually suffice, opening up design possibilities and reducing implementation complexity
This collaborative approach proves especially valuable when working at the cutting edge of performance requirements. When every clock cycle matters, having open communication channels allows for rapid iteration and requirement refinement based on what’s technically feasible within the available hardware resources.
Real-time FPGA systems represent the gold standard for applications where timing predictability is non-negotiable. By providing deterministic performance, independent parallel processing, and precise timing control, FPGAs enable engineers to build systems that meet hard real-time deadlines consistently. Whether you’re developing automotive safety systems, medical equipment, or satellite communication infrastructure, understanding the principles of real-time FPGA design is essential for creating reliable, predictable systems that perform when it matters most.
